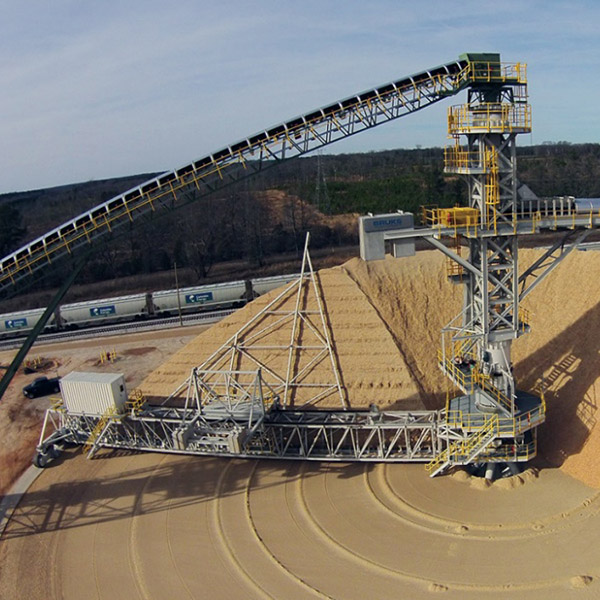

Stacker/Reclaimer

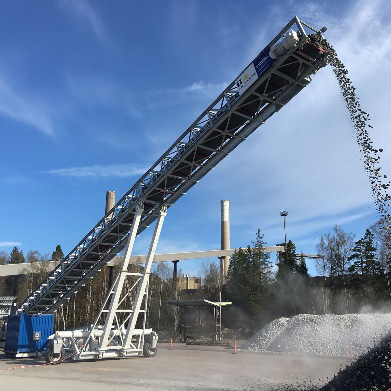

In order to solve the current situation of low efficiency, high cost and environmental protection of the loading machine in the aggregate industry, our company has developed and launched an epoch-making product for the sandstone aggregate industry market, absorbing foreign advanced experience---intelligent mobile reclaimer.


Specification of the Intelligent Mobile Feeder

Vehicle model: SL150-1200

Conveyor section number: two sections

Conveyor belt width:500-1200mm

Conveying speed: stepless speed regulation 0-4m/s

Conveying direction: belt conveying

Rotation angle of conveyor belt: 0±90°

                                                                                                                               (mm)

Basic parameter

Specification

Length

Width

Loading Height

Belt Width

Conveying Capacity

Power

Torque

ZYS800

15500

3200

3400

800

620m³/h

250kw

1350N.M

ZYS1000

15500

3200

3400

1000

1014 m³/h

276kw

1500N.M

ZYS1200

15500

320

3400

1200

1486m³/h

276kw

1800N.M

This table is the basic parameters, the mechanical equipment process is complex, need to configure the equipment according to customer requirements

Any change of technical data shall not be advised additionally
