Low Energy Consumption HL180 Tower Batching Plant


Basic Information

Place of Origin:	Qingdao, China
Brand Name:	TSKY
Certification:	SGS, ISO, BV, CE
Model Number:	HL180
Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Export standard container: 20GP or 40GP, 40HC
Delivery Time:	7-15 working days after confirmed order
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	10 sets per month

Detail Information:

Name:	HL180 Environment Friendly Tower Type Concrete Batching Plant	Theoretical Productivity:	180m3/h
Mixer Type:	TSKY MS/MP2000	Mixing Motor Power:	75Kw
Discharging Height:	3.8m/4.2m	Storage Hopper Capacity:	4*25m³
Aggregate Batcher:	PLD4800	Aggregates Max. Diameter:	Φ80mm
Aggregates Weighting Precision:	±2%	Powder/Water/Additive:	±1%
Bolted Cement Silo:	As Per Customer's Demand	Power Voltage/Frequency:	AC380V / 50HZ
Warranty:	12 Months
High Light:	HL180 Tower Batching Plant, 4.2m Tower Batching Plant, HL180 concrete batch plant

Product Description:

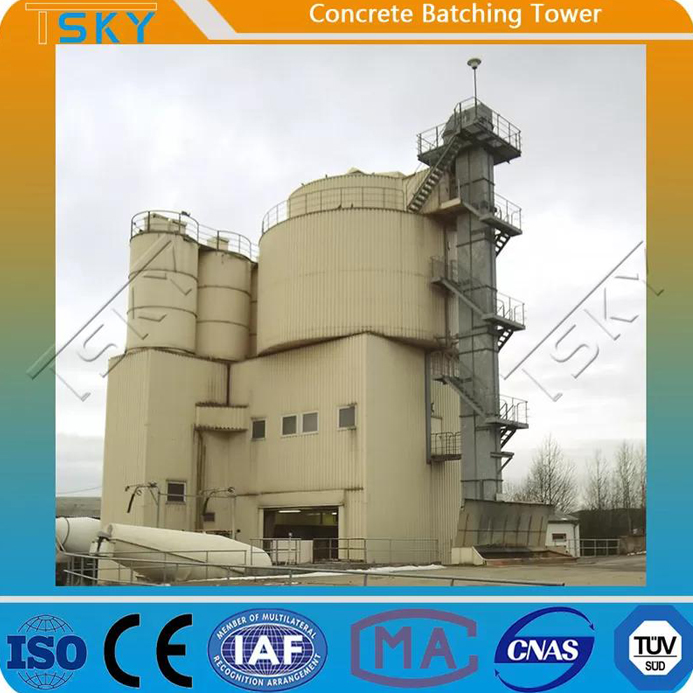

HL180 Environment Friendly Tower Type Concrete Batching Plant

Features Of HL180 Environment Friendly Tower Type Concrete Batching Plant

Wide Range Of Application

The HL180 environment friendly tower type concrete batching plant consists of conveying system, storage system, weighing system, concrete mixing system and control system. It is widely used in large and medium-sized construction sites, commercial concrete, prefabricated components and other concrete centralized mixing places.

Excellent Mixing Performance

The equipped MS twin-shaft mixer or MP planetary mixer has excellent performance, good mixing quality and high production efficiency. The accurate arrangement of mixing arms allows the rapid mixing of all types of quality concrete (dry, semi-dry and so on).

Advanced Control System

The HL180 environment friendly tower type concrete batching plant adopts the computer network and automatic control, which can achieve the network monitoring and automatic controlling to manage and control the whole process of concrete production.

Environment Friendly

All the raw materials, from the feeding, batching, weighing, throwing into the mixer and discharging, are all in sealed structure. The completely packed mixing main building and aggregate belt conveying system significantly reduce the dust pollution and noise. Negative pressure pulse dust collecting system can thoroughly solve the dust pollution problem during the production.

Easy Maintenance

Humanized large maintenance platform and stairs are easy and convenient for repair and maintenance.

Technical Parameter of HL180 Environment Friendly Tower Type Concrete Batching Plant

Model	HL60	HL90	HL120	HL180	HL240
Theoretical Productivity	60m³/h	90m³/h	120m³/h	180m³/h	240m³/h
Mixer Model	MS/MP1000	MS/MP1500	MS/MP2000	MS/MP3000	MS/MP4000
Mixing Motor Power	37Kw	55Kw	75Kw	110Kw	150Kw
Feeding Mode	Belt Conveyor Or Skip Hoist Conveyor
Cycling Period	60s	60s	60s	60s	60s
Max. Grain Size	80/40mm	80/40mm	80/50mm	80/50mm	80mm
Aggregate Bin Capacity	4*20m³	4*20m³	4*25m³	4*25m³	4*40m³
Aggregate Weighing Precision	±2%	±2%	±2%	±2%	±2%
Cement Weighing Precision	±1%	±1%	±1%	±1%	±1%
Fly Ash Weighing Precision	±1%	±1%	±1%	±1%	±1%
Water Weighing Precision	±1%	±1%	±1%	±1%	±1%
Additive Weighing Precision	±1%	±1%	±1%	±1%	±1%

Technical Parameter of HL180 Environment Friendly Tower Type Concrete Batching Plant

Main Parts of HLS180 Fully Automatic Operation Compact Tower Concrete mixing Plant

Aggregate Batching System PLD4800 Customization 3/4 hoppers with belt conveyor, pneumatic discharging mode with independent/cumulative weighting.			Twin-Shaft Mixer MS3000 Equipped with twin-horizontal shaft concrete mixer; Discharging height is 4.0m. Pneumatic/Hydraulic control, easy replacing of wearing parts, such as liner plates.

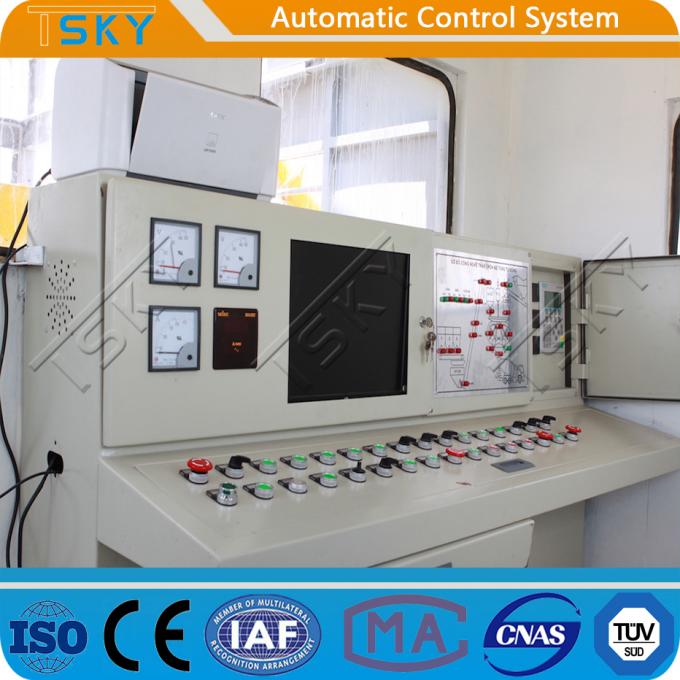

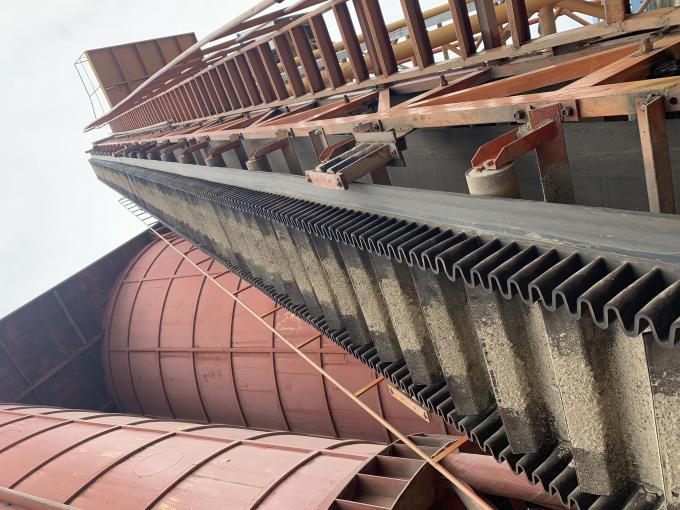

	Belt Type Aggregate Feeding	Automatic control system Full-automatic PLC/Centralized control with the emergency stop button and safety control key. TV monitoring systems for batching machine, concrete mixer, and discharging mouth are optional for clients.

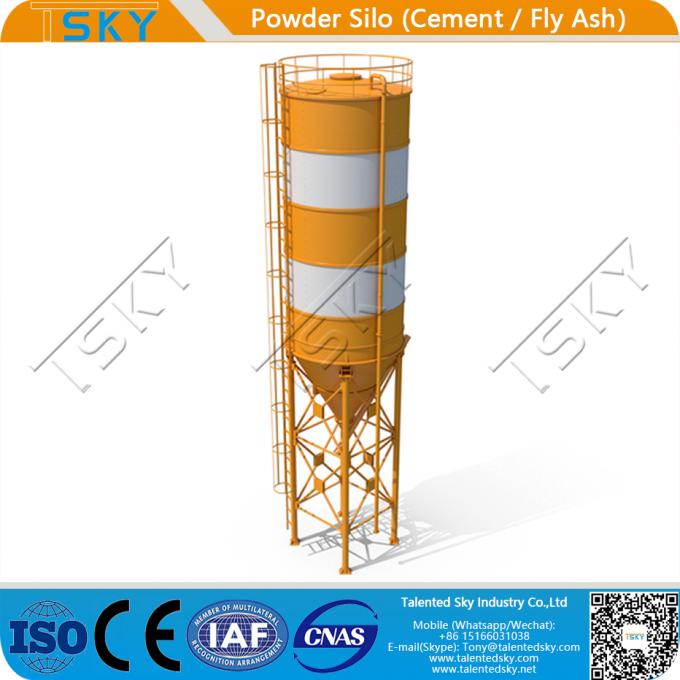

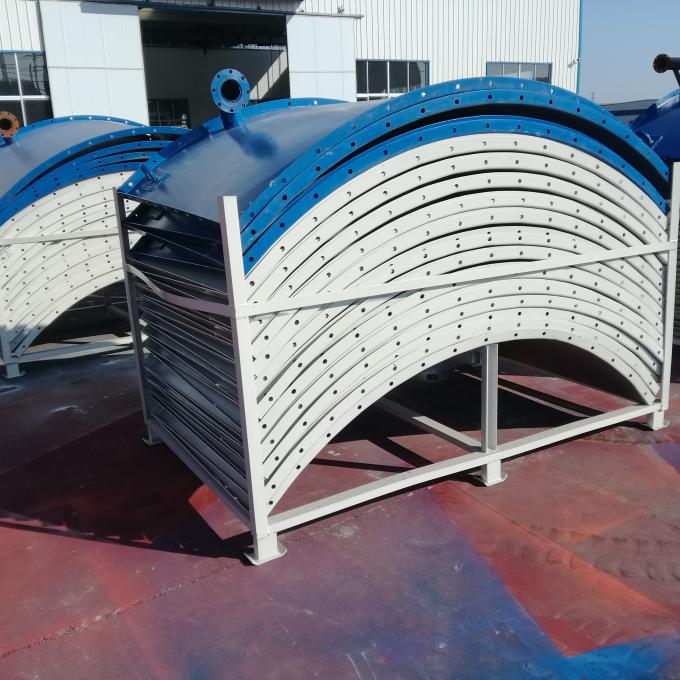

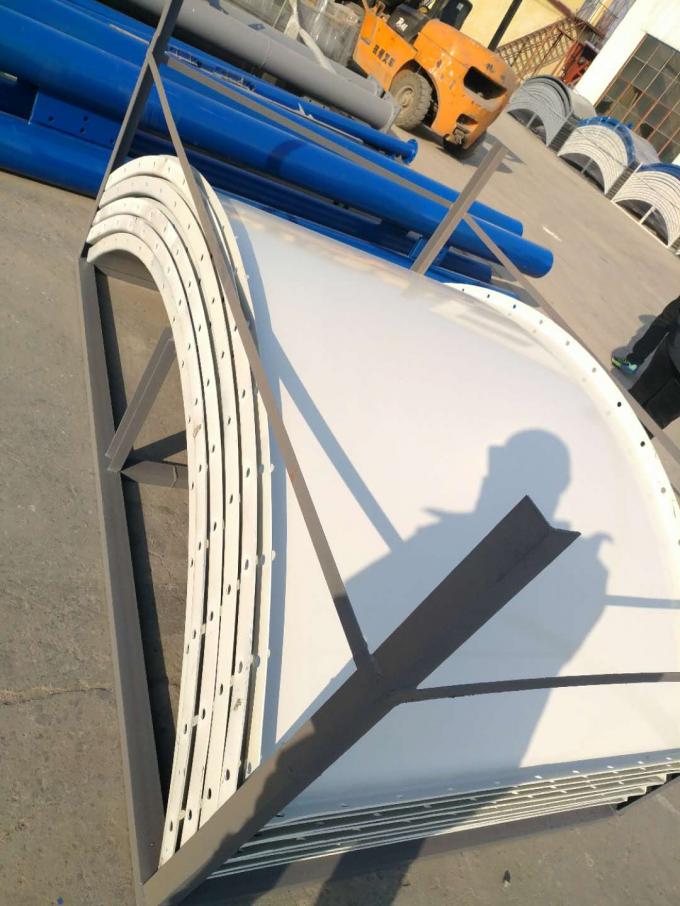

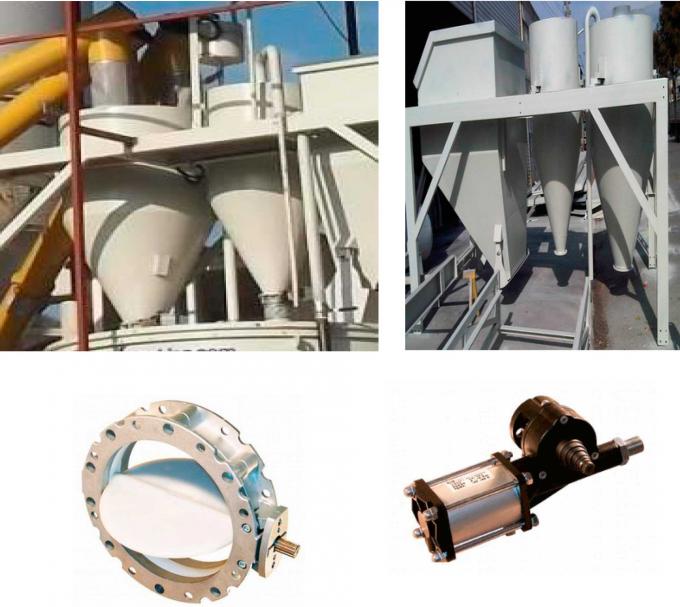

Bolted Cement Silo modular making with dust collector, broken arch, pressure relief valve, level gauge

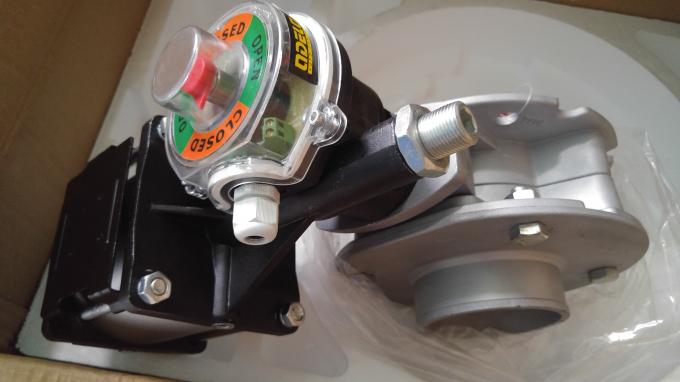

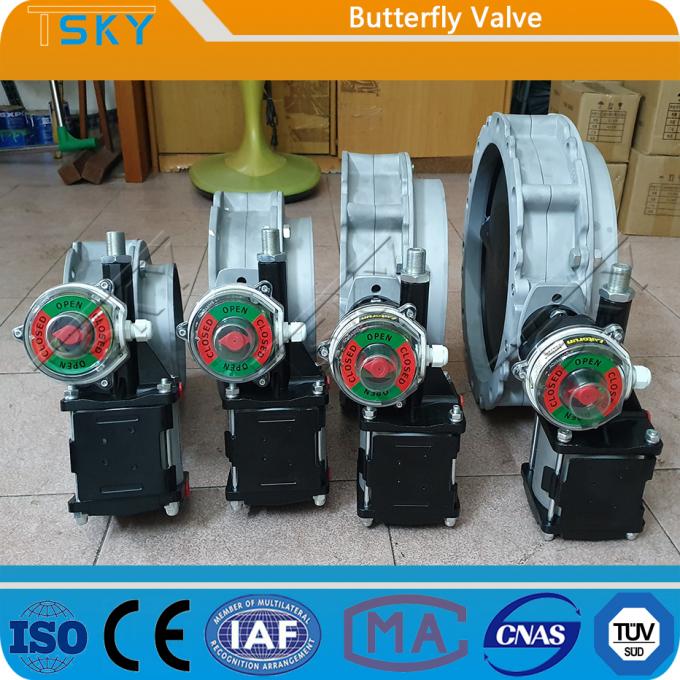

			Butterfly Valve

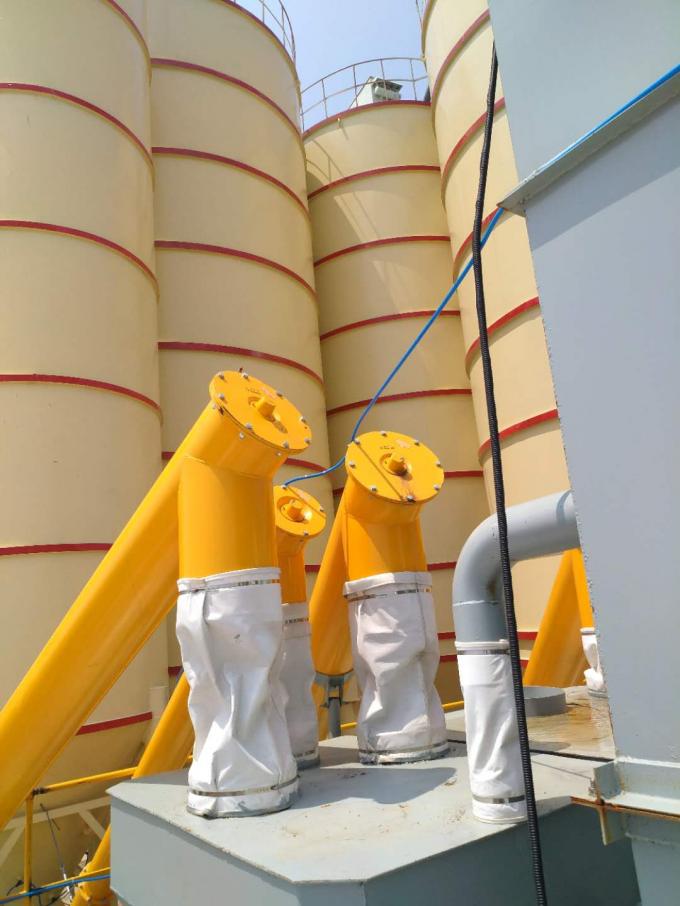

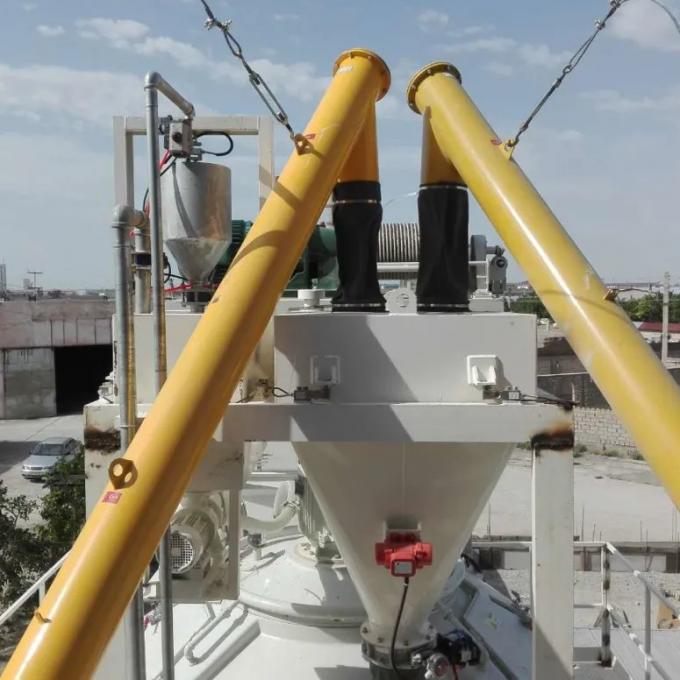

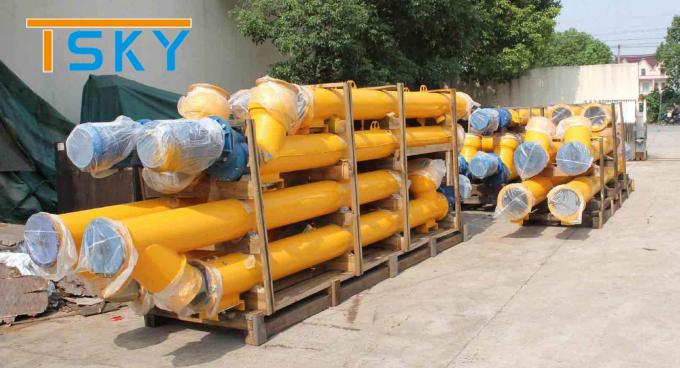

Screw conveyor to feed powders
	Weighing system The weighing system includes aggregate weighing, water weighing, cement weighing and additive weighing(optional). It is controlled by microcomputer, the weighing is highly accurate and fully automatic. Using a sensor with good quality, the tolerance of the weighing accuracy low to ± 1%. Or lower as customer's requirements.
