HLS180 Tower Batching Plant


Basic Information

Place of Origin:

Qingdao China

Brand Name:

TSKY

Certification:

ISO, CE, BV, FDA, SGS

Model Number:

HLS180

Minimum Order Quantity:

1 sets

Price:

Negotiable

Packaging Details:

20GP, 40GP or 40HC container

Delivery Time:

5-8 working days

Payment Terms:

L/C, D/A, D/P, T/T, Western Union

Supply Ability:

50 sets/month

Detail Information:

Name:

HLS180 ECO-Friendly High Capacity Tower Concrete Batching Plant

Theoretical Productivity:

180m3/h

Mixer Type:

TSKY MS3000

Motor Power:

2*75Kw

Discharging Height:

4.0m

Storage Hopper Capacity:

4*25m3

Flat Belt:

B=800mm

Aggregate Batcher:

PLD4800

Aggregates Max. Diameter:

Φ80mm

Aggregates Weighting Precision:

±2%

Powder/Water/Additive Weighing Precision:

±1%

Bolted Cement Silo:

4*100T

Power Voltage/Frequency:

AC380V / 50HZ

Warranty:

12 Months

High Light:

HLS180 tower batching plant

50HZ Tower Batching Plant

HLS180 concrete mixing plant

Product Description:

HLS180 ECO-Friendly High Capacity Tower Concrete Batching Plant

Features Of HLS180 ECO-Friendly High Capacity Tower Concrete Batching Plant

1. HLS180 concrete batch plant which is used for concrete machine, Productivity about 180m3/h;

2. The control method including Program and manual control system;

3. Horizontal mixing equipment also called concrete batch plant;

4. Its advantages: Small size, easy to control automatically, high efficiency;

5. Low cost and low energy consumption.

 The Description Of HLS180 ECO-Friendly High Capacity Tower Concrete Batching Plant

HLS180 concrete batch plant is a type of concrete machine which adopts LSY type screw conveyor, its transmission system is divided into aggregate conveyor and powder conveyor.

1. Modular structure and convenient to remove

2. MS3000 concrete mixer and aggregate to enhance the use of twin shaft compulsory concrete mixer, high mixing quality and high efficiency.

3. Aggregate batching using PLD4800 concrete batching machine, accurate measurement, high production efficiency.

4. Powder material is measured by electronic scale, and the proportioning accuracy is high.

5. Water using electronic scale measurement, will be more high accuracy.

6. Control System: The whole machine adopts computer control, which can not only control automatically, but also can be operated manually. The operation is simple and easy to control.

7. Suitable for small scale construction site, prefabricated parts factory and commodity concrete production plant, which is more suitable for railway, highway and other mobile strong concrete supply

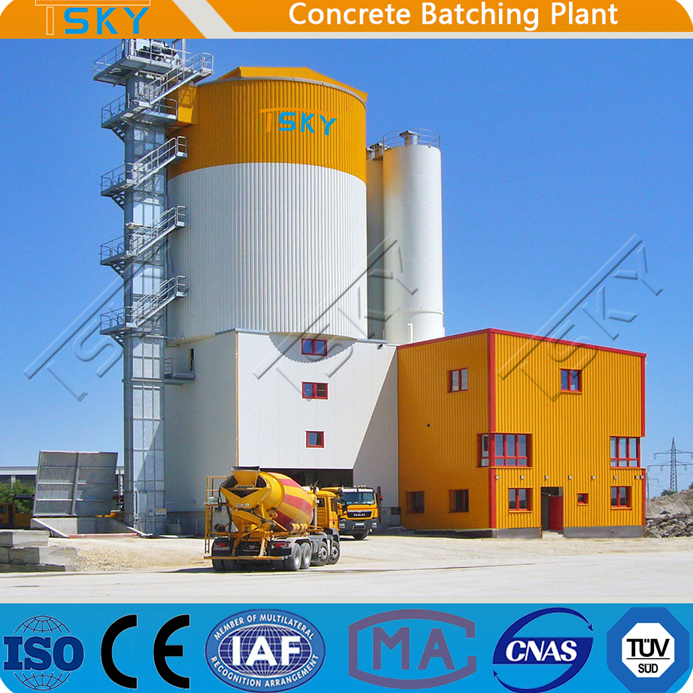

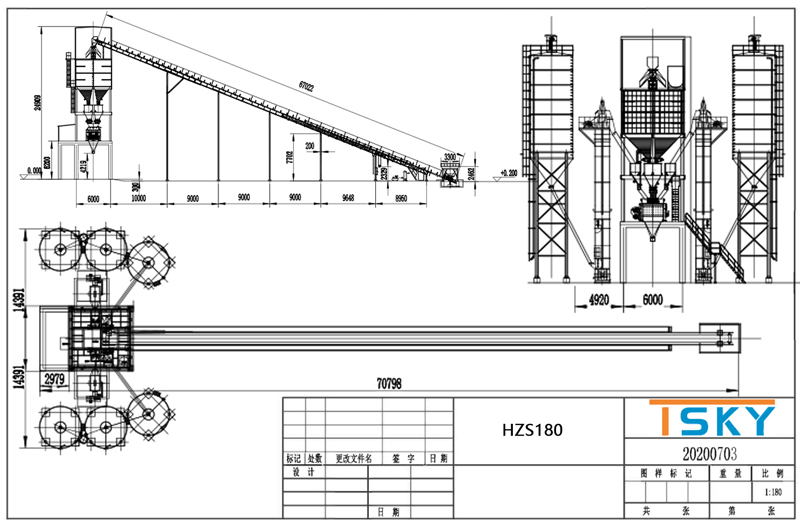

 The Layout Drawings Of HLS180 ECO-Friendly High Capacity Tower Concrete Batching Plant


Technical Data of HLS180 Fully Automatic Operation Compact Tower Concrete mixing Plant

Model

HZS25

HZS35

HZS50

HZS60

HZS75

HZS90

HZS120

HZS180

HZS240

Theoretical Productivity (m3/h)

25

35

50

60

75

90

120

180

240

Mixer Model

MS500

MS750

MS1000

MS1000

MS1500

MS1500

MS2000

MS3000

MS4000

Motor power(kw)

18.5

30

18.5*2

18.5*2

30*2

30*2

37*2

55*2

75*2

Aggregate batcher

PLD800

PLD1200

PLD1600

PLD2400

PLD2400

PLD2400

PLD3200

PLD4800

PLD4800

Aggregate Bins Capacity(m3)

2*6

3*6

3*12

3*12

3*12

3*12

4*20

4*20

4*25

Max. Aggregate Diameter(mm)

Φ80

Φ80

Φ80

Φ80

Φ80

Φ80

Φ80

Φ80

Φ80

Aggregate Feeding type

Skip hopper

Skip hopper

Skip hopper

Skip hopper /Belt type

Skip hopper /Belt type

Belt type

Belt type

Belt type

Belt Type

Cement Silo(T)

60/100

60/100

100

100

100

100

100

100

100

Discharge height (m)

3.8

3.8

3.8

4.0

4.0

4.0

4.0

4.2

4.2

Cycle time (s)

60

60

60

60

60

60

60

60

60

Weighing accuracy

Aggregate

±0.02

±0.02

±0.02

±0.02

±0.02

±0.02

±0.02

±0.02

±0.02

Cement

±0.01

±0.01

±0.01

±0.01

±0.01

±0.01

±0.01

±0.01

±0.01

Water

±0.01

±0.01

±0.01

±0.01

±0.01

±0.01

±0.01

±0.01

±0.01

Additive

±0.02

±0.02

±0.02

±0.02

±0.02

±0.02

±0.02

±0.02

±0.02

Total Power (kw)

45

60

75

80

110

150

175

215

295

Total Weight (T)

10

13

18

32

24

37

60

72

100

Dimension L*W*H (m)

Skip hopper Feed

13*9.4*19.2

15.2*9.4*19.2

15.4*12.3*19.2

23*15*19.4

25.7*15*19.4

27.8*15*19.4

34*13.2*19.4

40*19*18.5

/

Belt Feed

/

/

/

31.4*15.4*19.4

26.6*17.3*19.4

26.6*17.3*19.4

46.7*23*20

43.5*21*20

48*23*20

The Main Parts’ Characteristics

The mixing building adopts computer optimization design, advanced system configuration, high degree of modularizatoin, reasonable layout, convenient installation and debugging, which can meet the needs of different users to the concrete building. Overhead type of aggregate storage measurement system greatly improves the productivity of the equipment. The main components of the control system adopt international famous brand of imported components. It assures the reliable work, stable performance and accurate measurement. Perfect industrial design and thorough ergonomics processing make it unique structure, beautiful appearance, excellent environmental performance comfortable operation and convenient maintenance.

 Main Parts of HLS180 Fully Automatic Operation Compact Tower Concrete mixing Plant

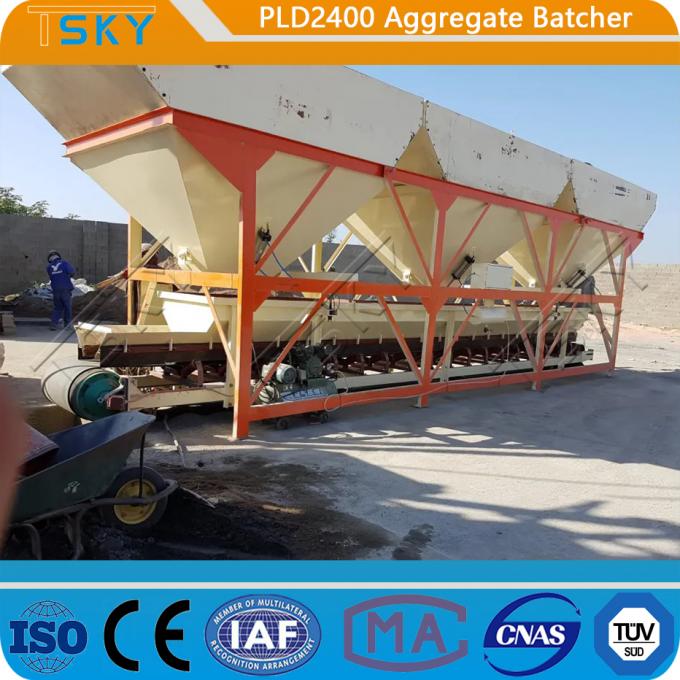

Aggregate Batching System

PLD4800

Customization 3/4 hoppers with belt conveyor, pneumatic discharging mode with independent/cumulative weighting.






Twin-Shaft Mixer

MS3000

Equipped with twin-horizontal shaft concrete mixer; Discharging height is 4.0m. Pneumatic/Hydraulic control, easy replacing of wearing parts, such as liner plates.


Belt Type

Aggregate Feeding

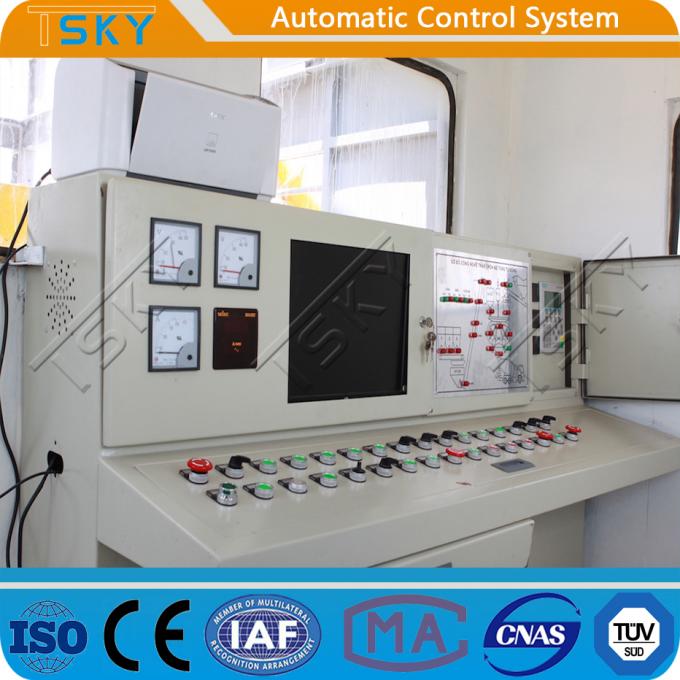

Automatic  control system

Full-automatic PLC/Centralized control with the emergency stop button and safety control key. TV monitoring systems for batching machine, concrete mixer, and discharging mouth are optional for clients.

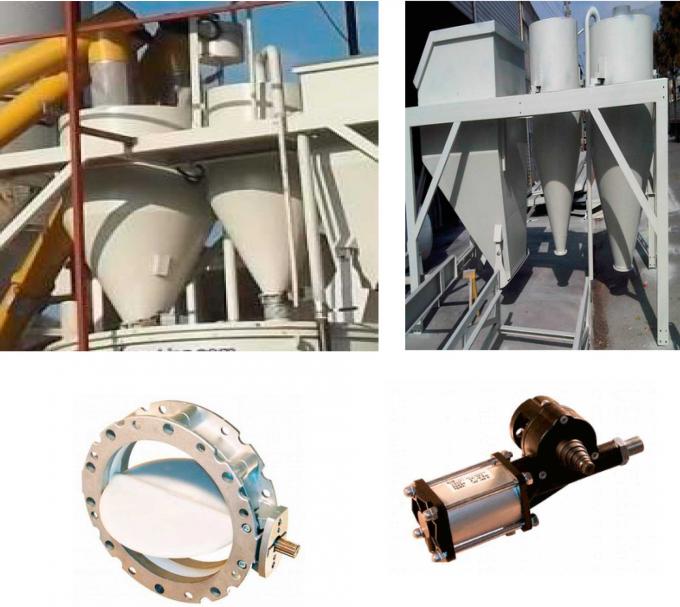

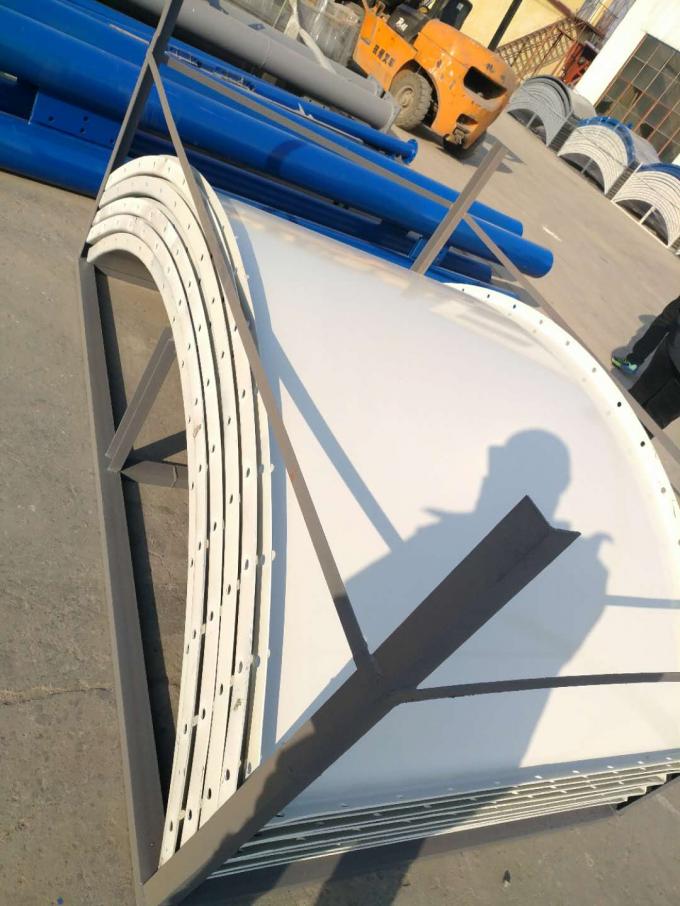

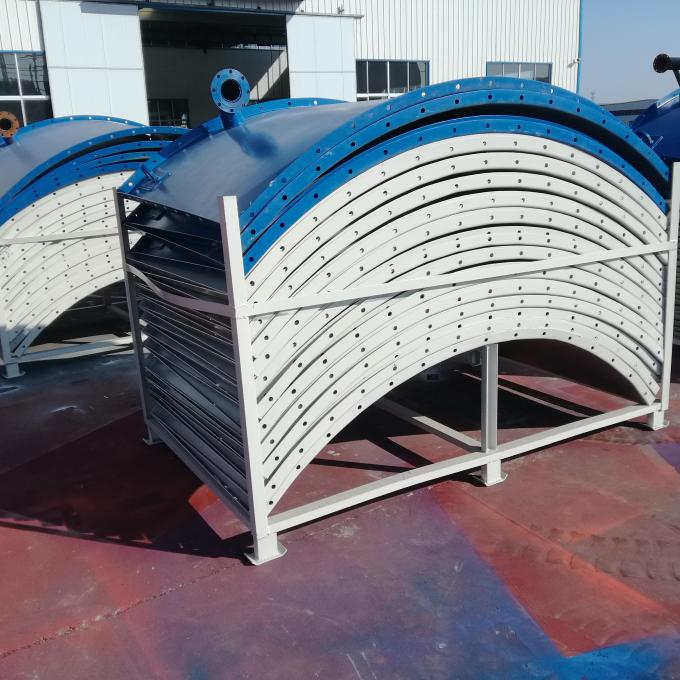

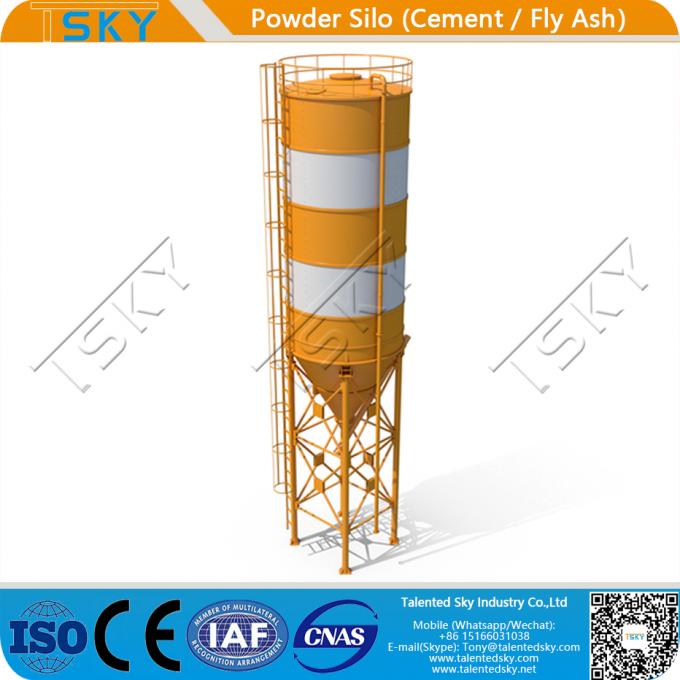

Bolted Cement Silo

modular making with dust collector, broken arch, pressure relief valve, level gauge

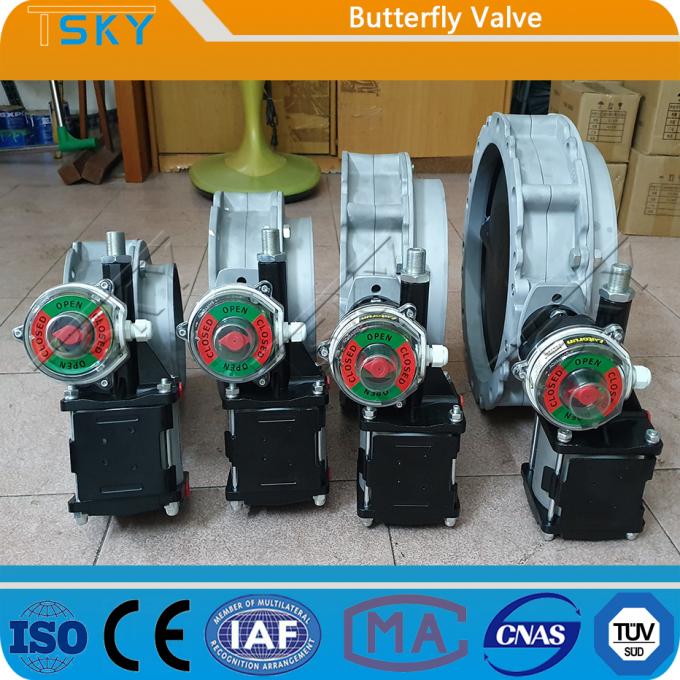

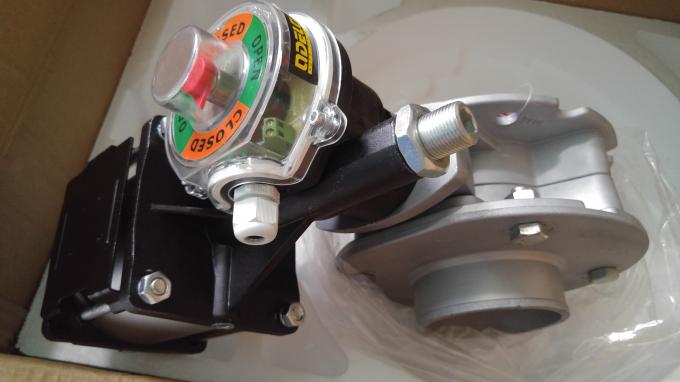

Butterfly Valve

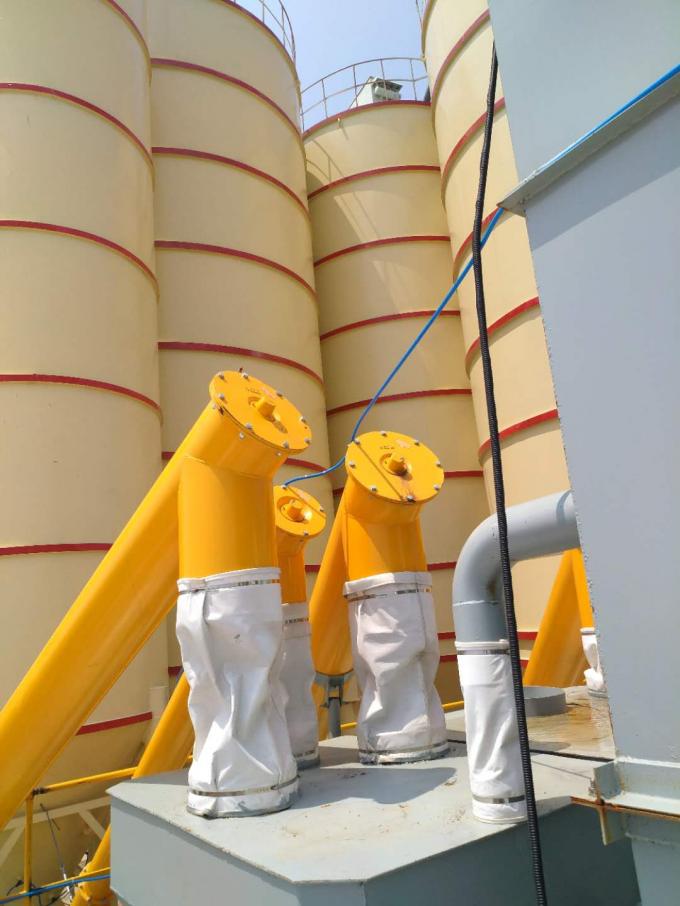

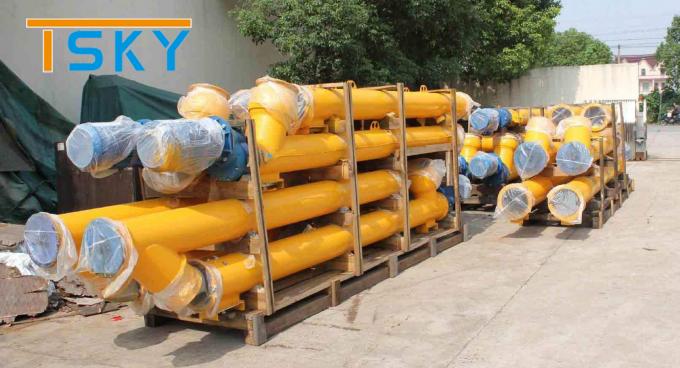

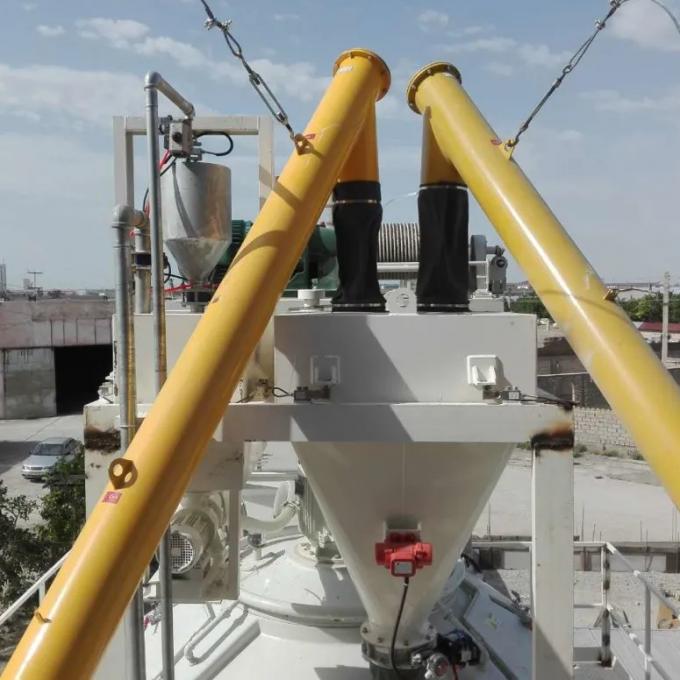

Screw conveyor to feed powders



Weighing system
The weighing system includes aggregate weighing, water weighing, cement weighing and additive weighing(optional). It is controlled by microcomputer, the weighing is highly accurate and fully automatic.
Using a sensor with good quality, the tolerance of the weighing accuracy low to ± 1%. Or lower as customer's requirements.
