EP CC NN Multi Layers 300mm Heavy Duty Conveyor Belt


Basic Information

Place of Origin:

Qingdao China

Brand Name:

TSKY

Certification:

ISO, CE, BV, FDA, DIN

Model Number:

EP200-2000

Minimum Order Quantity:

1 m

Price:

Negotiable

Packaging Details:

Paging Details --- Maximum 500m per roll for rubber EP conveyor belts --- Cassette package is available for abrasion resistant conveyor belts --- One 20" container can load 6--8 rolls DIN-Y conveyor belts --- One cka40" container can load 8--10 rolls stone

Delivery Time:

5-8 working days

Payment Terms:

L/C, D/A, D/P, T/T, Western Union

Supply Ability:

50000 m/month

Detail Information:

Name:

EP CC NN Multi Layers Durable Heavy Duty Industrial Conveyor Rubber Belt

Material:

Cotton (CC), Cover Rubber, Nylon(NN), Polyester (EP)

Application:

Cement, Mine, Coal Mining, Quarry, Industry

Structure:

Belt Conveyor, EP/NN Fabric Conveyor Rubber Belt

Standard:

DIN, JIS, ISO, CEMA, GB

Color:

Black

Belt Width:

300-2200 Mm

Condition:

New

Wanranty:

12 Months



High Light:

300mm heavy duty conveyor belt

EP200 heavy duty conveyor belt

300mm industrial conveyor belt

Product Description:

EP CC NN Multi Layers Durable Heavy Duty Industrial Conveyor Rubber Belt

 Fabric conveyor belts or textile conveyor belts, are used principally for heavy-duty, abrasive materials,to transport all types of bulk material, including mining, stone and earth handling, building industries, recycling, steel processing, wood, paper and pulp. They are a more cost-effective option for shorter conveying distances and lower capacities than steel cord belts. TSKY’s fabric conveyor belts are known as TSKY Textile belts.

 Features of TSKY Rubber Conveyor Belt :

1. Reinforcement properties

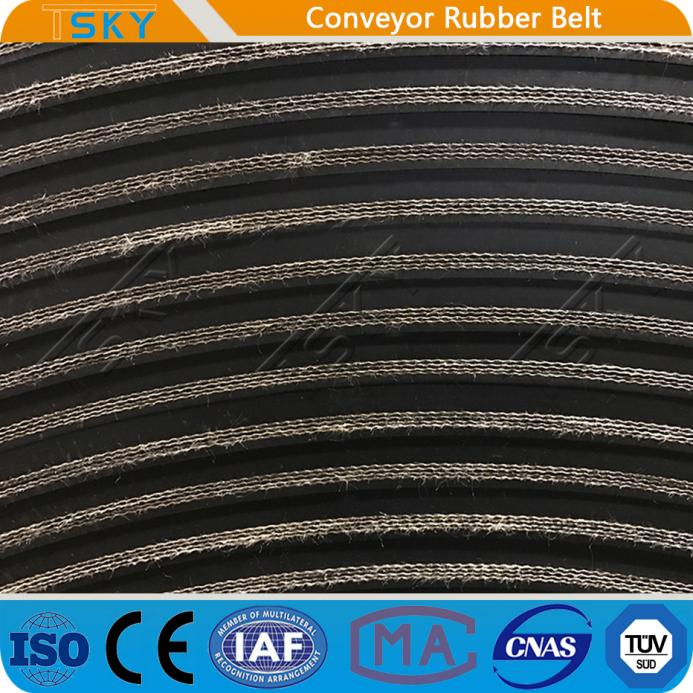

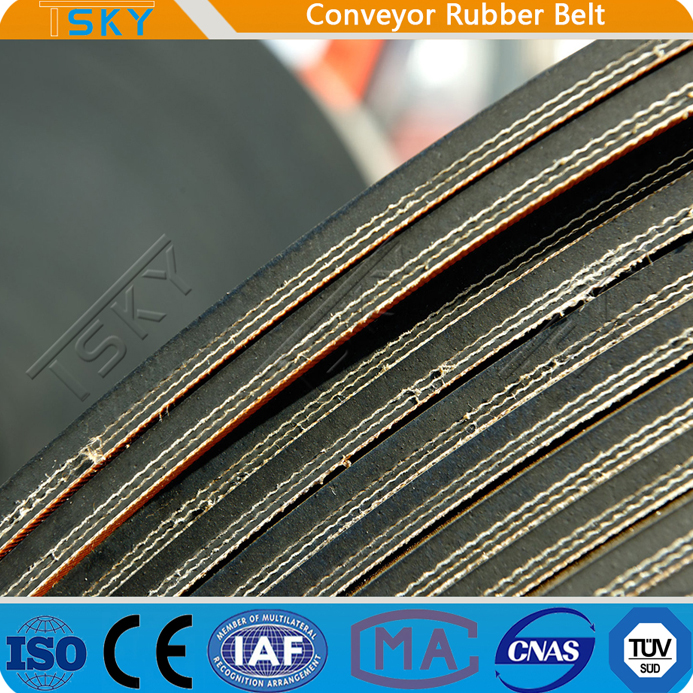

The belt comprises a number of layers of synthetic fabrics specially treated to ensure low elongation (1 to 3.5%) and good adhesion to rubber. The length wise threads (warp) are polyester while the cross wise ones (weft) are polyamide. This plain-woven combination ensures a high tensile strength-to-weight ratio, excellent flexibility and outstanding troughing properties, as well as high resistance to impact, and chemicals.

Other thread materials and different weaves are available on request.

 2. Cover grades

Various cover grades can be supplied, and they are all made of high-quality rubber with extremely high resistance to abrasion, shearing and impact and excellent ageing properties.Your choice of cover grade depends on the intended application. Note that the working life of the belt is also determined by the application.

 3. Resistance: Wear-resistant, Heat-resistant, Flame-resistant, Tear-Resistant, Cold-Resistant,Oil-Resistant, Acid And Alkali Resistant etc.

Wear-resistant : Available in X, Y, W grades (and similar) for heavy-wear conveying applications such as bulky, sharp materials like heavy, abrasive rocks. Can handle abrasion, wear, impact and other kinds of heavy-duty wear. High-quality cover grades are recommended to offer the best protection for the belt carcass.

 Heat-resistant : Different types of grades are available for high-temperature applications (T120 and T200) such as clinker, coke, foundry sand and slag. Can be used for transporting material at continuous temperatures of up to 190 °C, with peaks of up to 200 °C.

 Flame-resistant: Available in flame-resistant configuration to meet safety category EN12882 for above-ground operations and EN14973 for underground applications.

 Tear-Resistant: Anti-stretch(tensile) layer is made from high-strength steel mesh, nylon net, aramid fiber net or low-extensity zinc (copper) plating steel cord, and an additional transverse reinforcement layer for anti-tear purpose is foreseen above or below the longitudinal steel wire rope. With high-strength, wear-resistant and the aging-resistant rubber coverage. The rubber belt shows the advantage that be able to prevent the tear from expanding when it is punctured by sharp objects during operation.

 Oil-Resistant: Able to bear oil conveyor belt cover glue adopt high acrylonitrile man nitrile of content glue the subject material adopting the duck, nylon canvas or EP canvas are the brute force layer. Apply to transporting and sucking the oil supplies and keeping in touch in the environments of different job oil (except or the solvent oil).

 Acid And Alkali Resistant: It is suitable for working environment in contact with acid and alkali, such as phosphate fertilizer manufacturing and sea salt drying. The covering layer is blended with rubber and plastic and filled with inert materials with excellent acid and alkali resistance, which has better performance than neoprene rubber acid and alkali resistant conveyor belts. Use cotton canvas, nylon canvas or EP canvas as the strong layer, generally made into a ring.


Applicable Use of EP CC NN Multi Layers Durable Heavy Duty Industrial Conveyor Rubber Belt

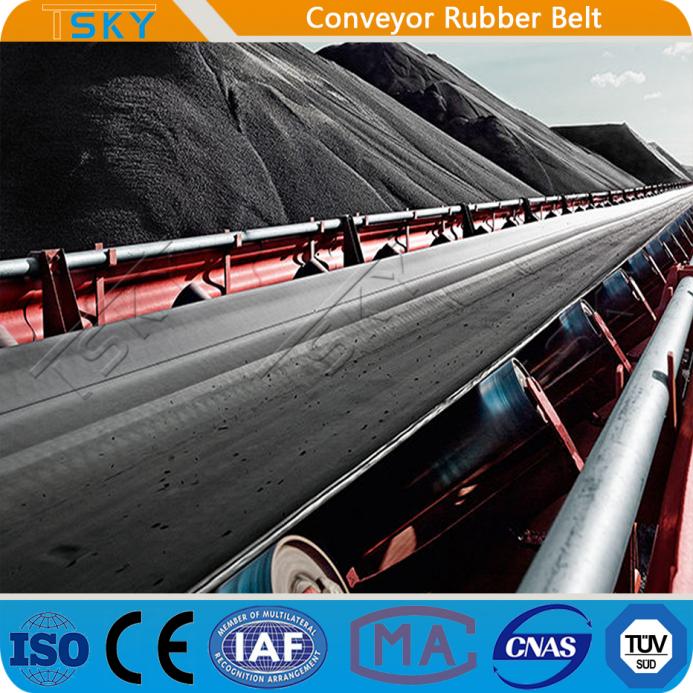

Fabric conveyor belts or textile conveyor belts, are used principally for heavy-duty, abrasive materials,to transport all types of bulk material, including mining, stone and earth handling, building industries, recycling, steel processing, wood, paper and pulp. It is mainly used to transport powder, small and medium granular or less wearing material and some other articles to the belt at common temperature.

 Grade standards: It carries out standard of GB/T7984-2013 “General-used Conveyor Belts”, DIN22103

Grade standards and characteristics

GRADE

ISO

DIN

Characteristics

X

H

X

Wear-resistant, heavy-duty cover for sharp and lumpy material, or extreme drop heights

Y

L

Y

Wear-resistant cover for standard applications

AA, W

D

W

Wear-resistant cover, for fine and abrasive material

UAR, UAR30

D

Y, W

Extremely wear-resistant cover, for fine and abrasive materia

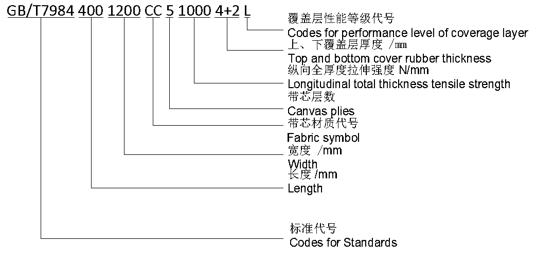

Key to symbols of Cotton Canvas Fabric Conveyor Belts Textile Rubber Conveyor Belt



Technical Data of EP CC NN Multi Layers Durable Heavy Duty Industrial Conveyor Rubber Belt

Cover physical and Mechanical Properties

Item

Cover type and property

H

D

L

Tensile strength (MPa≥)

24

18

15

Elongation at breaking(%≥)

450

400

350

The changing rate for tensile strength and elongation at breaking after Aging test 70℃*168h (%)

±25

±25

±25

Abrasion loss (mm3)

120

100

200


Product specifications

Fabric structure

Fabric materials

NO. of fabric plies

Width (mm)

Length (mm)

Cover rubber thickness  mm)

Warp

Weft

Top

Bottom

Cotton canvas

Cotton

Cotton

3-12

300-2200

100000

3.0-6.0

1.5-4.5


TSKY Textile Conveyor Belts Technical Specifications

BELT TYPE

TOP

BOTTOM

THICKNESS*

WEIGHT*

BELT WIDTH*

EP 160/2

2 mm

1 mm

4.6 mm

5.6 kg/m2

300 - 1300 mm

EP 200/2

2 mm

1.5 mm

5.6 mm

6.4 kg/m2

300 - 1400 mm

EP 250/2

3 mm

1 mm

6.3 mm

7.7 kg/m2

400 - 1600 mm

EP 250/2

3 mm

1.5 mm

6.8 mm

8 kg/m2

400 - 1400 mm

EP 315/2

4 mm

1.5 mm

7.9 mm

9.4 kg/m2

500 - 1600 mm

EP 315/3

3 mm

1.5 mm

7.3 mm

8.2 kg/m2

800 mm

EP 400/2

3 mm

1 mm

6.7 mm

8.5 kg/m2

650 - 1600 mm

EP 400/2

5 mm

1.5 mm

9.4 mm

11.3 kg/m2

650 - 1600 mm

EP 400/3

3 mm

1 mm

6.8 mm

8.2 kg/m2

400 - 1000 mm

EP 400/3

4 mm

2 mm

8.8 mm

10.4 kg/m2

500 - 1200 mm

EP 500/3

5 mm

1.5 mm

9.4 mm

11.1 kg/m2

600 - 1600 mm

EP 500/4

3 mm

1 mm

7.8 mm

9.4 kg/m2

1000 - 1200 mm

EP 500/4

4 mm

2 mm

9.8 mm

11.6 kg/m2

1200 - 1400 mm

EP 500/4

5 mm

2 mm

10.8 mm

12.8 kg/m2

650 - 1000 mm

EP 500/4

6 mm

2 mm

11.8 mm

13.9 kg/m2

800 mm

EP 630/4

5 mm

2 mm

11 mm

13 kg/m2

2000 - 2400 mm

EP 630/4

6 mm

2 mm

12 mm

14.1 kg/m2

800 - 1200 mm

EP 630/4

8 mm

3 mm

15 mm

17.7 kg/m2

1000 - 1400 mm

EP 630/5

5 mm

1.5 mm

11.3 mm

13.5 kg/m2

800 - 1200 mm

EP 800/5

6 mm

2 mm

12.8 mm

16 kg/m2

1000 - 1200 mm

*Approximately
