Heavy Duty Belt Conveyor Motorized Driving Pulley Drum


Basic Information

Place of Origin:

Qingdao China

Brand Name:

TSKY

Certification:

ISO, UNI, DIN, AFNOR, FEM, BS, JIS, SANS and CEMA.

Model Number:

YTH,TDY75,WD,YZ,DY1,JYD,YDB,YZWB

Minimum Order Quantity:

1 sets

Price:

Negotiable

Packaging Details:

pallet, container

Delivery Time:

5-8 working days

Payment Terms:

L/C, D/A, D/P, T/T, Western Union

Supply Ability:

5000 sets/month

Detail Information:

Material:

Steel, Rubber

Color:

Customized Colors

Type:

Head Drive Pulley

Condition:

New

Standard:

ISO, UNI, DIN, AFNOR, FEM, BS, JIS, SANS And CEMA

Application:

Cement, Mine, Coal Mining, Quarry, Industry

Size:

Customized Size, Upon Drawing

Bearing:

NSK, SKF, HRB, Ball Bearing, NTN

Surface Treatment:

Hot Dip Galvanizing Smooth Steel, Rubber Coat, Herringbone, Rhombic Rubber Lagging



Product Description:

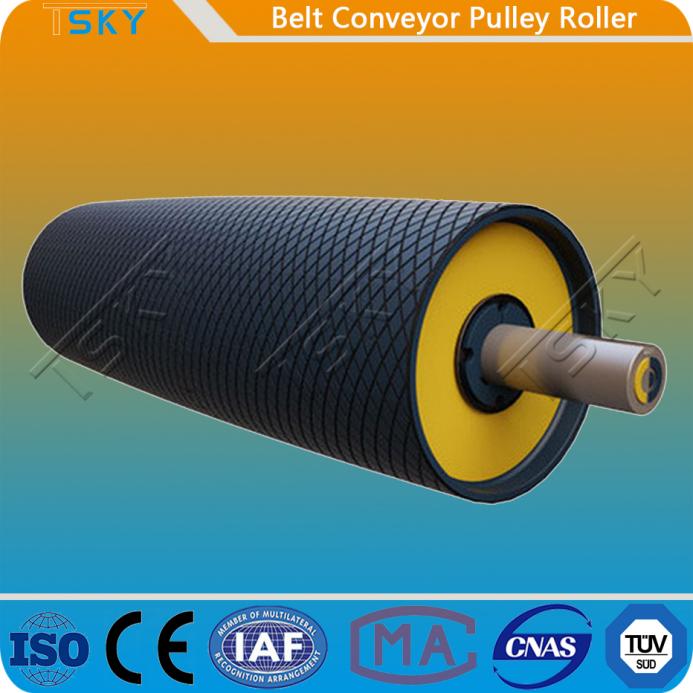

Heavy Duty Belt Conveyor Motorized Driving Pulley Drum With Rubber Lagging

TSKY designs and manufactures light and heavy duty pulleys, using materials of the highest quality in a production process employing advanced technologies. TSKY Pulley minimize noise and vibration as well as contribute to a longer belt life for overall lower cost of ownership.

 Motorized pulley is a new type of driving device that puts the motor and reducer together inside the pulley body. It is mainly used in fixed and mobile belt conveyors, instead of traditional motors, separate drive devices with reducers in addition to the drive pulley.

 Motorized Pulleys are available from D138 mm to D1000 mm, with a variety of lagging options to provide a durable drive with a long service-life. Totally enclosed: motor, gearbox and bearings are totally enclosed and sealed inside a steel shell. Motorized Pulleys have a safe and worry-free design that withstands the harshest conditions and reduces operating costs.

 Motorized Pulley Working Conditions:

1. The operating environment temperature is -15℃, +40℃;

2. The altitude does not exceed 1000 meters;

3. The temperature of the conveyed material does not exceed 60℃;

4. Voltage 380V, frequency 50Hz.

 Motorized Pulley Range:

As the power of belt conveyors and lifting equipment, motorized pulley are widely used in mining, metallurgy, chemical, coal, building materials, electricity, food and transportation sectors.

 Motorized Pulley Features:

1. It can replace the widely used motor-reducer type external drive device to form a belt conveyor, which can transport bulk materials such as coal, ore, sand, cement, flour, etc., and can also transport finished items such as hemp bales and equipment .

2. The structure is simple and compact, and the space area is small.

3. It is well-sealed, suitable for working places with high dust concentration and damp muddy soil.

4. Easy to use and maintain, safe and reliable operation, and long life.

5. Low energy consumption and easy to realize centralized control.

6. It can meet all kinds of backstop, brake, rubber coating and other requirements.

 SPACE SAVING DESIGN:

the drive unit and the bearings are mounted inside the Motorized Pulley shell so it takes up much less room than a conventional drive. Due to its compact size and smooth lines, quite often the Motorized Pulley is out of sight, because it is hidden within the conveyor frame.

 NO MAINTENANCE:

it requires no maintenance other than the recommended oil change every 30.000 hours standard oil, 50.000 hours synthetic oil (almost 10 years considering 8h/day for 5 days working).

 SAFETY:

the Motorized Pulley is probably one of the safest drives available because the motor is completely enclosed and the external shafts are stationary.

 LOWER ENERGY COST (EFFICENCY):

the Motorized Pulley has a much higher efficiency from electrical motor to shell (pulley face) than conventional drives, because it has fewer frictional losses and therefore mechanical efficiencies up to 97% can be achieved. Energy savings up to 35% compared to conventional exposed-drive conveyors.

LOW NOISE:

thanks to the totally sealed enclosure and high-quality gears the Motorized Pulley runs almost at a whisper, reducing noise to minimal decibel levels.

 Standard of Motorized Pulley:

ISO, UNI, DIN, AFNOR, FEM, BS, JIS, SANS and CEMA.

Selection instructions

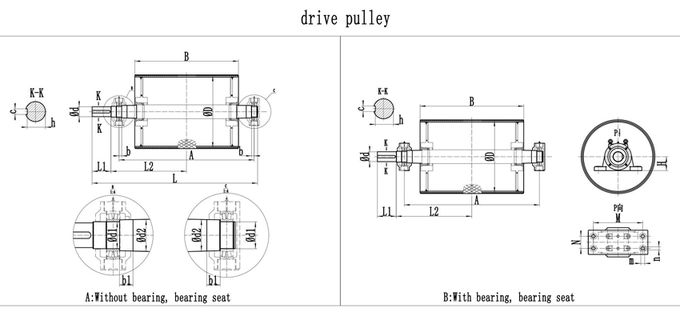

If you need the drive pulley, please refer to the follow picture and fill the size what you need in the tabulation;

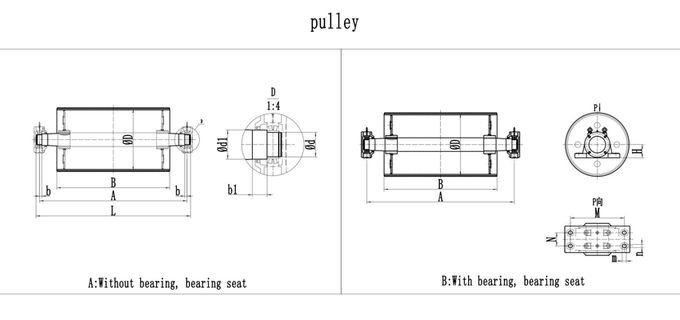

If you need others, such as tail pulley, bend pulley, tension pulley, etc. please refer to the follow pulley picture and give the pulley’s size and requirement you need.

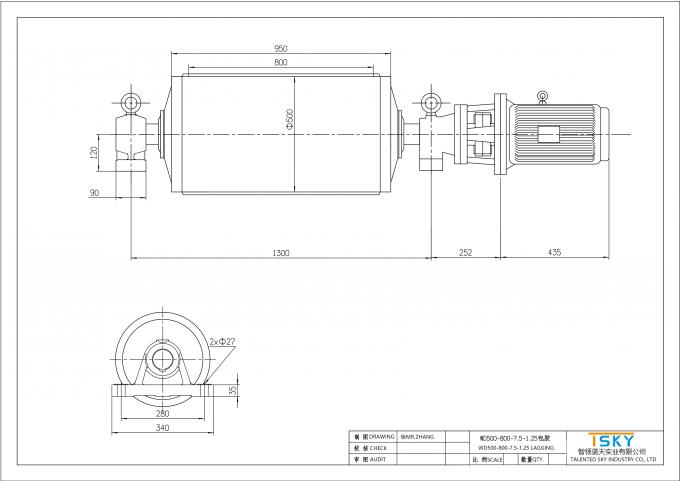

Layout Drawing of Motorized Rubber Lagging Head Driving Conveyor Drum Pulley Roller.
