Basic Information
Place of Origin: | Qingdao China |
Brand Name: | TSKY |
Certification: | ISO, CE, BV, FDA, SGS |
Model Number: | HZS60 |
Minimum Order Quantity: | 1 sets |
Price: | Negotiable |
Packaging Details: | 20GP, 40GP or 40HC container |
Delivery Time: | 5-8 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
Supply Ability: | 50 sets/month |
Detail Information:
Name: | HZS60 Bucket Feeding Modular Concrete Batching Plant | Theoretical Productivity: | 60m3/h |
Mixer Type: | TSKY MS1000 | Motor Power:: | 37Kw |
Discharging Height: | 4.0m | Storage Hopper Capacity: | 3*12m3 |
Flat Belt: | B=800mm | Aggregate Batcher: | PLD2400 |
Aggregates Max. Diameter: | Φ80mm | Aggregates Weighting Precision: | ±2% |
Powder/Water/Additive Weighing Precision: | ±1% | Bolted Cement Silo: | 2*100T |
Power Voltage/Frequency: | AC380V / 50HZ | Warranty: | 12 Months |
High Light: | HZS60 Concrete Batching Plant, 60m3 Concrete Batching Plant, HZS60 concrete batch plant | ||
Product Description:

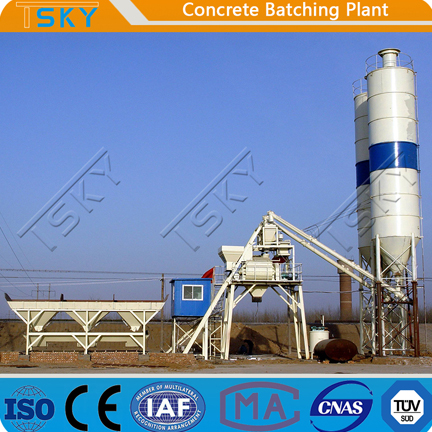

HZS60 Bucket Feeding Modular Concrete Batching Plant
The heart of the concrete batching plant is the mixer, and there are many types of mixers such as Tilt Drum, Pan, Planetary, Single Shaft and Twin shaft mixer. The twin shaft mixer can ensure an even mixture of concrete through the use of high horsepower motors, while the tilt mixer offers a comparatively large batch of concrete mix.
Features Of HZS60 Bucket Feeding Modular Concrete Batching Plant :
1. HZS60 concrete batch plant which is used for simple and single concrete machine, Productivity about 50m3/h;
2. The control method including Program and manual control system;
3. Horizontal mixing equipment also called concrete batch plant;
4. Its advantages: Small size, easy to control automatically, high efficiency;
5. Low cost and low energy consumption.
The Description Of HZS60 Bucket Feeding Modular Concrete Batching Plant :
HZS60 concrete batch plant is a type of small concrete machine which adopts LSY type screw conveyor, its transmission system is divided into aggregate conveyor and powder conveyor.
1. Modular structure and convenient to remove
2. MS1000 concrete mixer and aggregate to enhance the use of twin shaft compulsory concrete mixer, high mixing quality and high efficiency.
3. Aggregate batching using PLD2400 concrete batching machine, accurate measurement, high production efficiency.
4. Powder material is measured by electronic scale, and the proportioning accuracy is high.
5. Water using electronic scale measurement, will be more high accuracy.
6. Control System: The whole machine adopts computer control, which can not only control automatically, but also can be operated manually. The operation is simple and easy to control.
7. Suitable for small scale construction site, prefabricated parts factory and commodity concrete production plant, which is more suitable for railway, highway and other mobile strong concrete supply

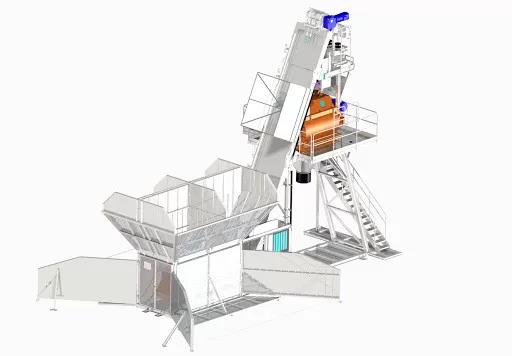

The Layout Drawings Of HZS35 Skip Hoist Feeding Modular Concrete Batching Plant:
HZS60 Bucket Feeding Modular Concrete Batching Plant Technical Data:
Model | HZS25 | HZS35 | HZS50 | HZS60 | HZS90 | HZS120 | HZS180 | |
Capacity (m3/h) | 25 | 35 | 50 | 60 | 90 | 120 | 180 | |
Mixer | MS500 | MS750 | MS1000 | MS1000 | MS1500 | MS2000 | MS3000 | |
Aggregate Batcher | PLD800 | PLD1200 | PLD1600 | PLD2400 | PLD2400 | PLD3200 | PLD4800 | |
Motor Power(kw) | 18.5 | 30 | 18.5*2 | 18.5*2 | 30*2 | 37*2 | 55*2 | |
Cement Silo(T) | 60/100 | 60/100 | 100 | 100 | 100 | 100 | 100 | |
Aggregate Feeding type | Skip hopper | Skip hopper | Skip hopper | Belt type | Belt type | Belt type | Belt type | |
Discharge height (m) | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | |
Cycle time (s) | 60 | 60 | 60 | 60 | 60 | 60 | 60 | |
Weighing accuracy | Aggregate | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 |
Cement | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 | |
Water | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 | |
Additive | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 | |
Note: | Customized concrete mixing plant is welcome | |||||||
The Main Parts' Characteristics
The mixing building adopts computer optimization design, advanced system configuration, high degree of modularization, reasonable layout,
convenient installation and debugging, which can meet the needs of different users to the concrete building. Overhead type of aggregate storage
measurement system greatly improves the productivity of the equipment. The main components of the control system adopt international famous
brand of imported components. It assures the reliable work, stable performance and accurate measurement. Perfect industrial design and
thorough ergonomics processing make it unique structure, beautiful appearance, excellent environmental performance comfortable operation and
convenient maintenance.
HZS60 Bucket Feeding Modular Concrete Batching Plant Main Parts

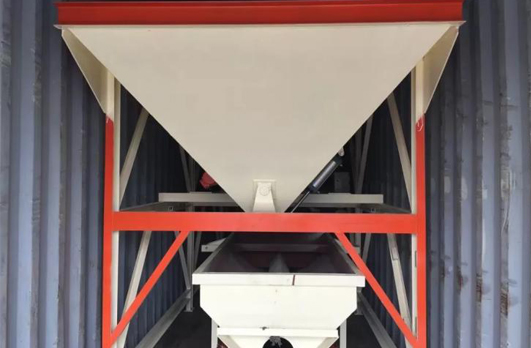

Aggregate Batching System PLD2400 Customization 3/4 hoppers with belt conveyor, pneumatic discharging mode with independent/cumulative weighting. |
|

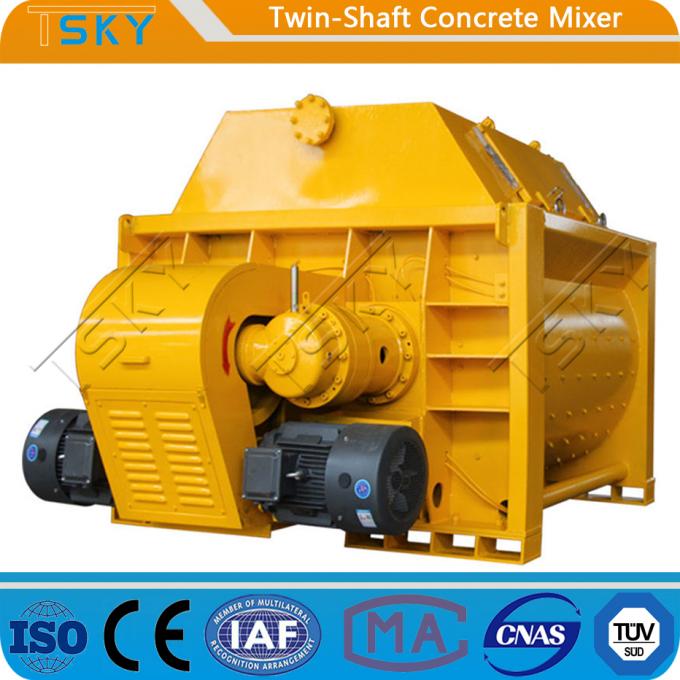

| Twin-Shaft Mixer MS1000 Equipped with twin-horizontal shaft concrete mixer; Discharging height is 4.0m. Pneumatic/Hydraulic control, easy replacing of wearing parts, such as liner plates. |

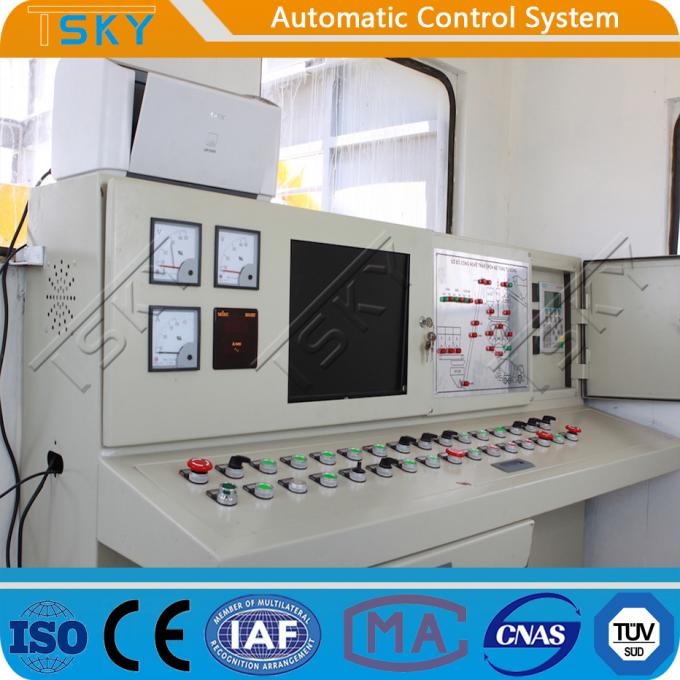

| Skip Hopper Aggregate Feeding | Automatic control system Full-automatic PLC/Centralized control with the emergency stop button and safety control key. TV monitoring systems for batching machine, concrete mixer, and discharging mouth are optional for clients. |
|

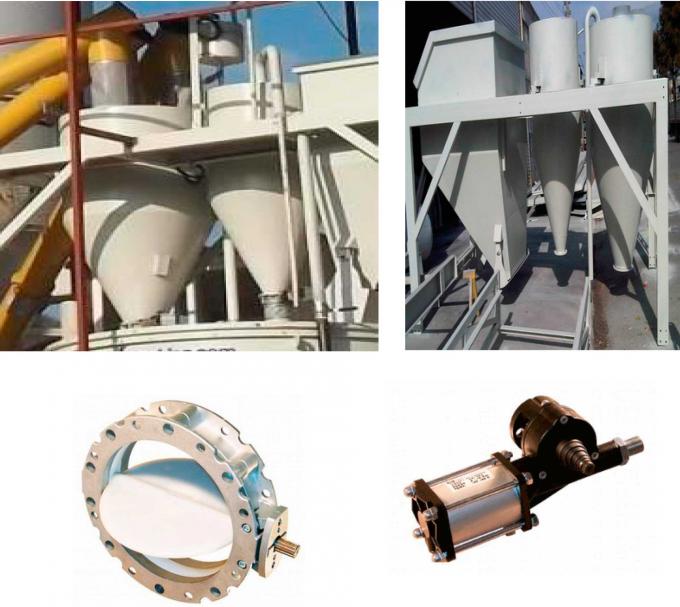

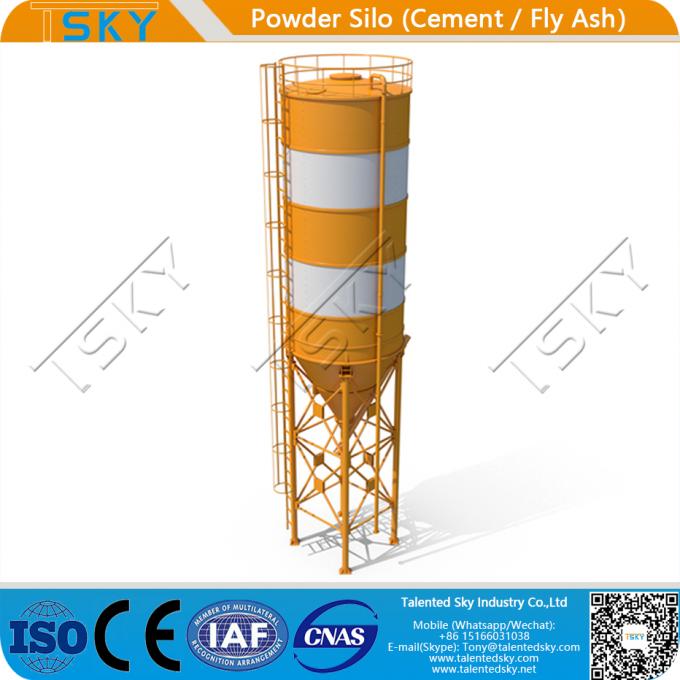

Bolted Cement Silo modular making with dust collector, broken arch, pressure relief valve, level gauge | | ||
| Butterfly Valve | ||

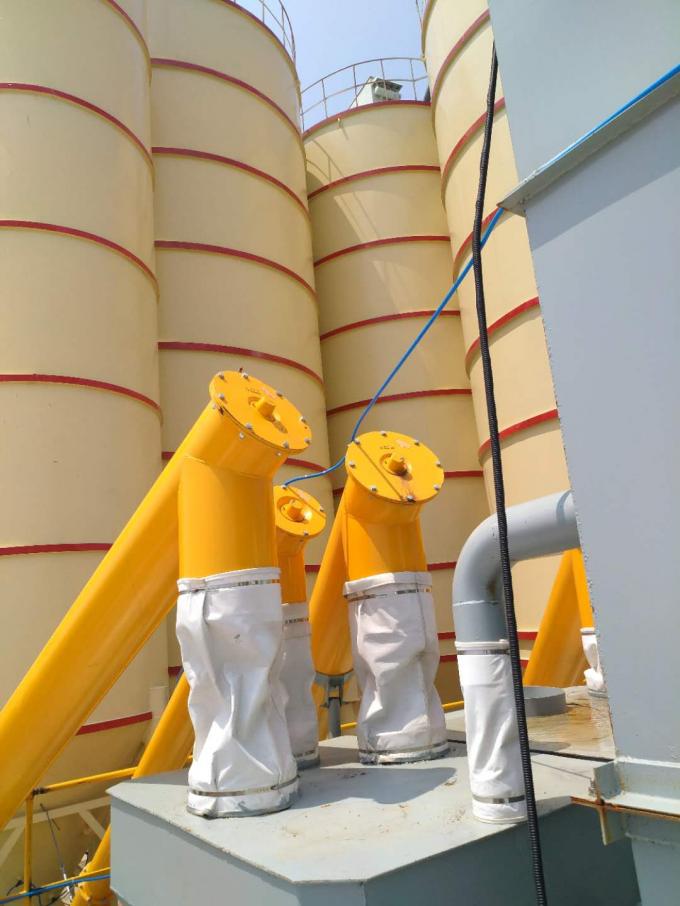

Screw conveyor to feed powders | | ||
| Weighing system |
| |
